HOME >> Hoists >> Hand Chain Hoist

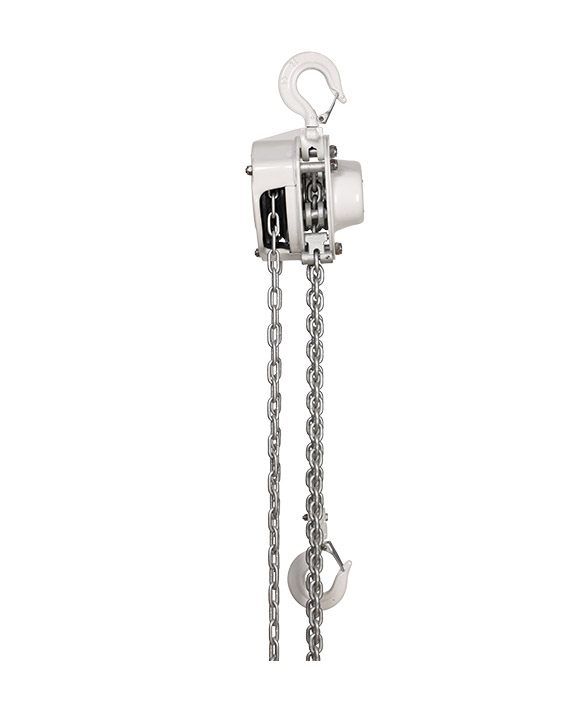

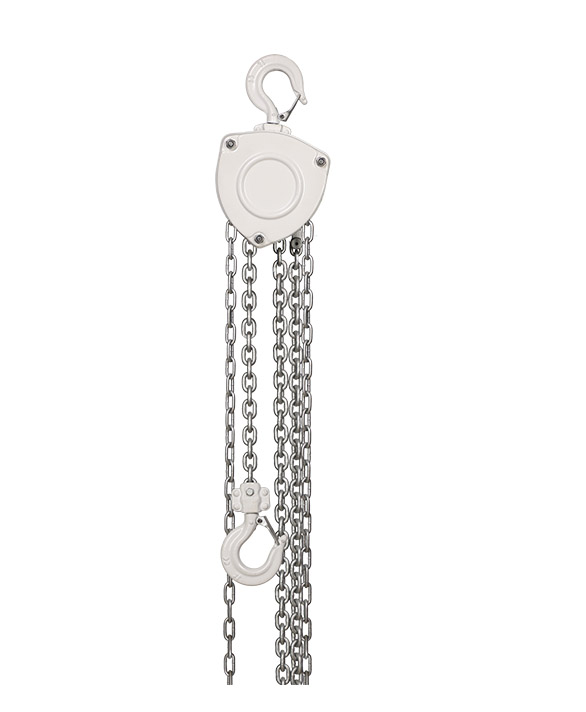

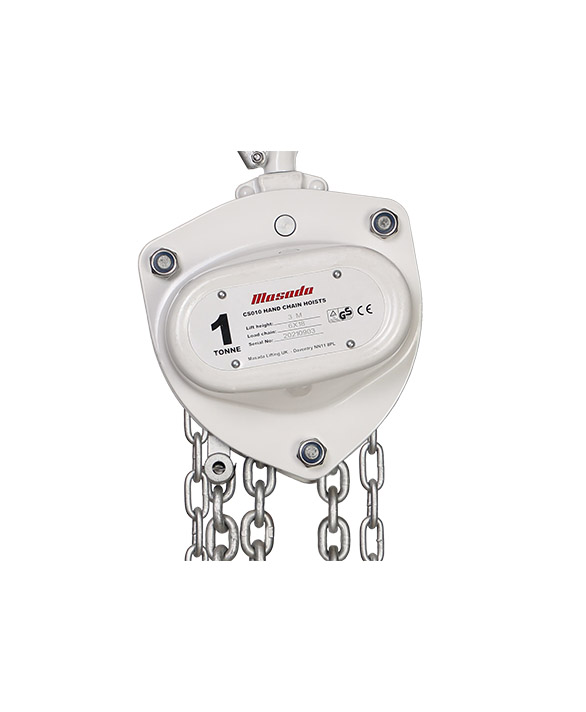

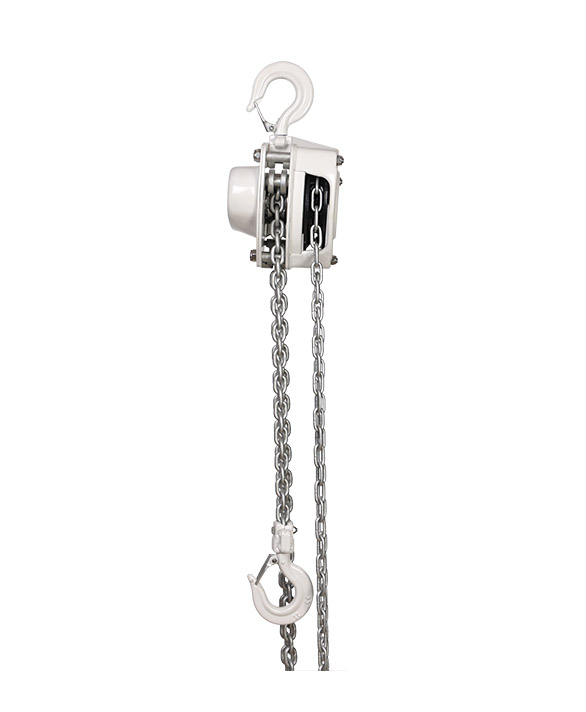

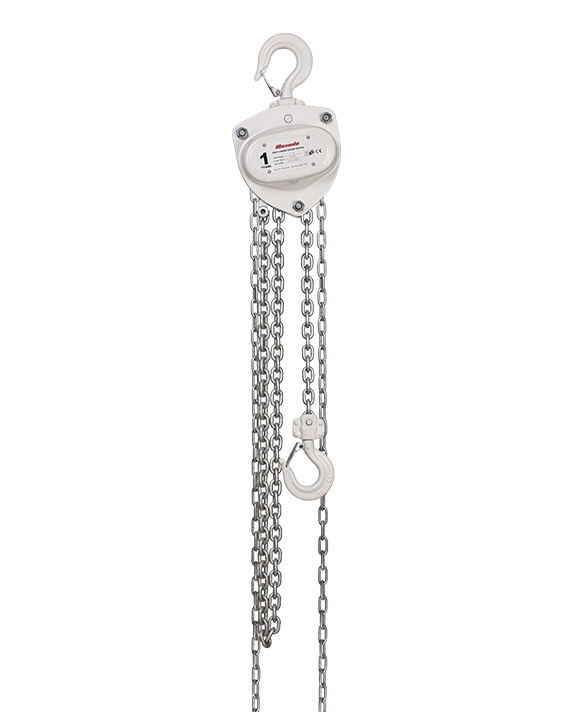

CS Anti Corrosion Hand Chain Hoists

High strength corrosion resistant type hand hoist is made of stainless steel,  dacromat, composite spray plastic, a variety of high corrosion resistant technology and industrial combination of grinding, in order to ensure that the product should be based on the mechanical properties of high corrosion resistance.


  • Main Feature

    ● Active stainless steel pawl brake brake system

    ● Alloy steel forged gears and axles, integrated gear design

    ● Alloy steel forging up and down hook head, forging safety sheet

    ● The inner gear and structure are treated with special corrosion resistance

    ● Integrated impact resistant gear box housing protection, brake room double cover protection

    ● Ocean type special powder metallurgy sintered integral friction plate, stainless steel fasteners and fasteners

    ● Suitable for wet and multi-immersion environment, can be used up to 2500 meters of water depth, and continuous operation for 1500 hours

    ● Standard corrosion-resistant load chain, hand zipper and reinforced tail

    ● Standard corrosion-resistant load chain, hand zipper and reinforced tail block

    ● Working temperature: -40*C to +50*C

    ● Ultra-high temperature or ultra-low temperature product available.


  • Specifications

    Model

    CS005

    CS010

    CS015

    CS020

    CS030

    CS030S

    CS050

    CS100

    CS200

    CS300

    W.L.L(kg)

    500

    1000

    1500

    2000

    3000

    3000

    5000

    10000

    20000

    30000

    Lift(m)

    2.5

    2.5

    2.5

    2.5

    3

    3

    3

    3

    3

    3

    Load Chain

    Falls

    1

    1

    1

    1

    1

    2

    2

    4

    8

    12

    Size

    5x15

    6x18

    7.1x21

    8x24

    10x30

    7.1x21

    9x27

    9x27

    9x27

    9x27

    Hand Force(N)

    240

    250

    265

    335

    363

    265

    360

    380

    380x2

    380x2

    N.W(kg)

    11

    12.5

    17.8

    19.5

    29

    23.5

    41.3

    78.5

    193

    220

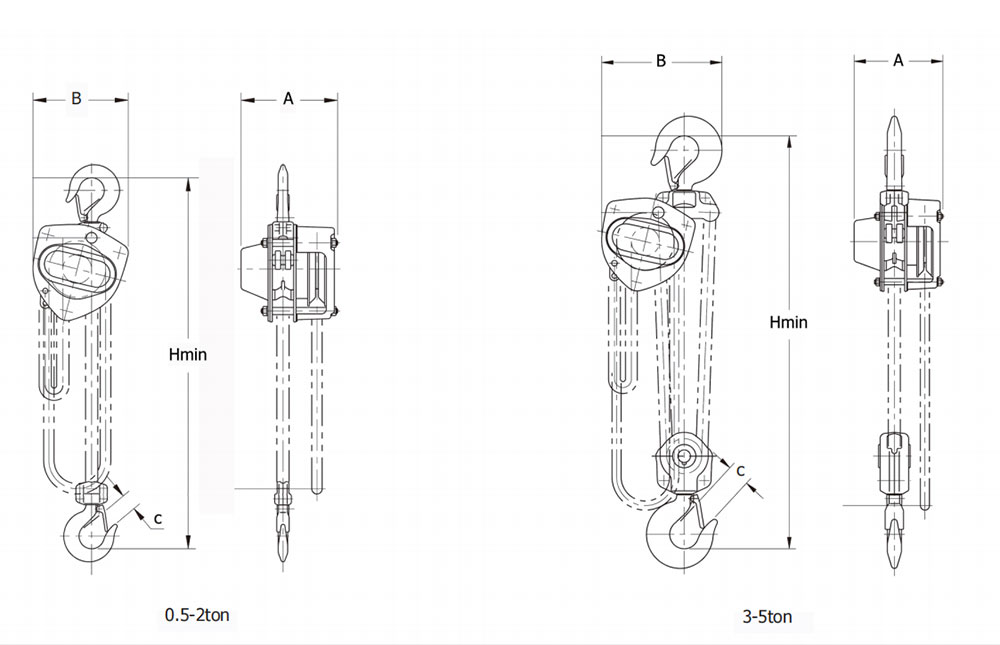

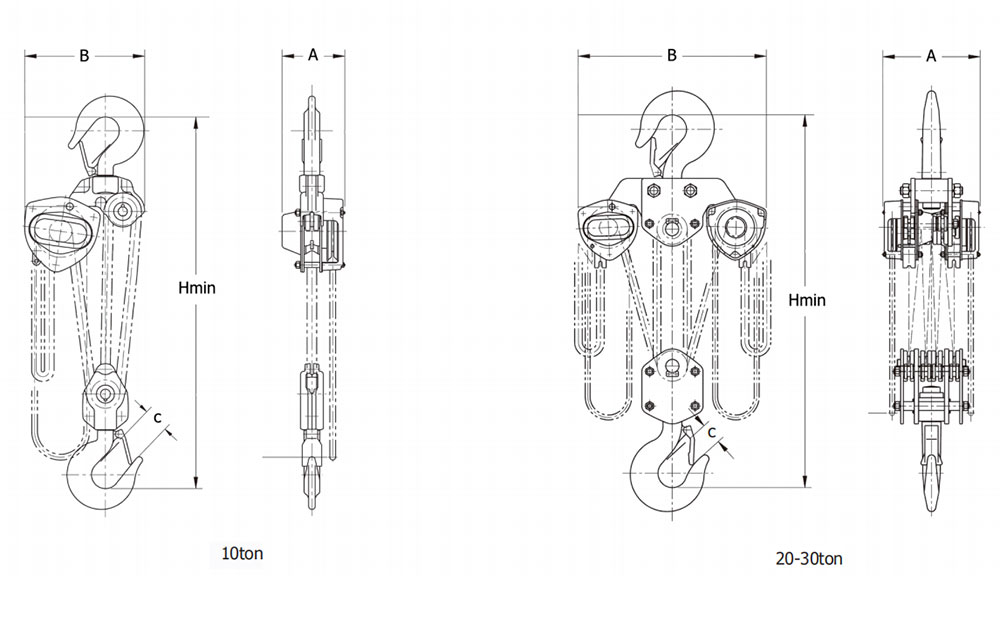

    Dimensions

    A(mm)

    132

    151

    173

    175

    176

    173

    189

    189

    189

    330

    B(mm)

    148

    172

    196

    210

    230

    226

    280

    463

    630

    670

    C(mm)

    28

    32

    36

    36

    46

    46

    46

    57

    82

    106

    Hmin(mm)

    345

    376

    442

    470

    565

    490

    688

    765

    890

    1000

    Packing Size(cm)

    24x19x18

    28x21x21

    34x26x20

    34x26x20

    41x32x24

    34x26x20

    41x32x24

    48x42x18.5

    78x68x20

    85x67x30








  • Optional

    ● Overload limiter

    ● Stainless steel hand zipper

    ● High quality special chain

    ● Grade100 load chain


  • Download

    CS Hand Chain Hoist Brochures.pdf
