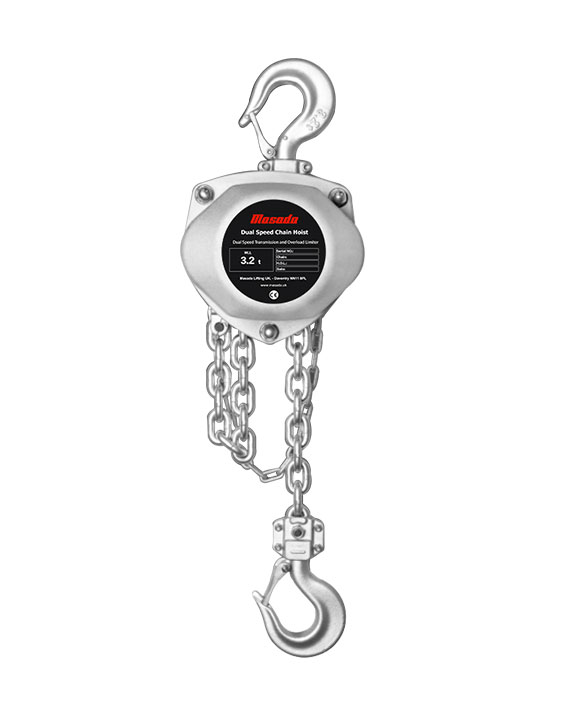

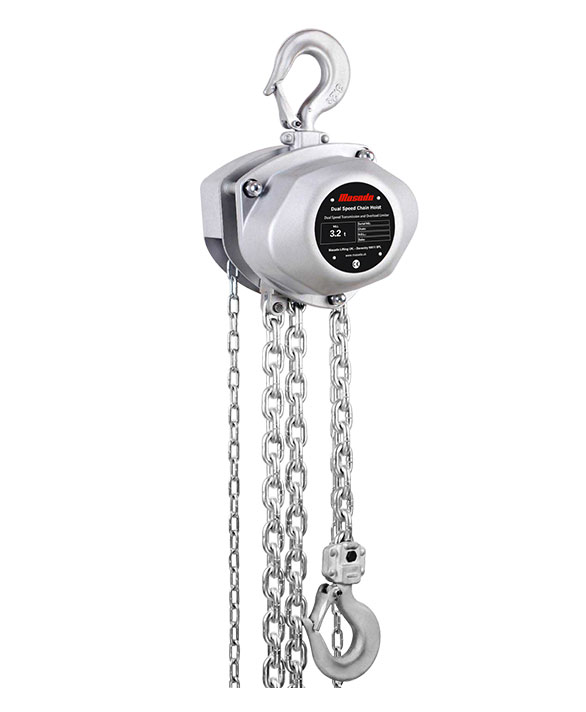

CD High Speed Hand Chain Hoists

• The dual speed chain hoist can lift and lower the load chain 5 times faster than a regular chain hoist when it does not have a load.

• Available capacity 3.2t to 50t.

• When the hoist is loaded, the lifting and lowering speed will be the same as a regular chain hoist.

• Equipped with Load Sensing Automatic Speed Transmission which is the first in this field.

• Smooth speed transmissions between high and standard speed without neutral position, which is reliable and safe.

• Equipped with an overload limiter ensuring safe operation.

Main Feature

●Equipped with Load Sensing Automatic Speed Transmission which

is first in the field and reaches the international leading level.

●Smooth speed transmission between high and standard speed

without a neutral position, which is reliable and safe.

●The chain hoist can lift and lower the load chain 5 times faster

then the regular chain hoist when it does not have a load.

●Equipped with an overload limiter. Ensure safety operation.

●Adopt Japanese & German grade 100 alloy steel chains, which

has the highest strength and the best quality.

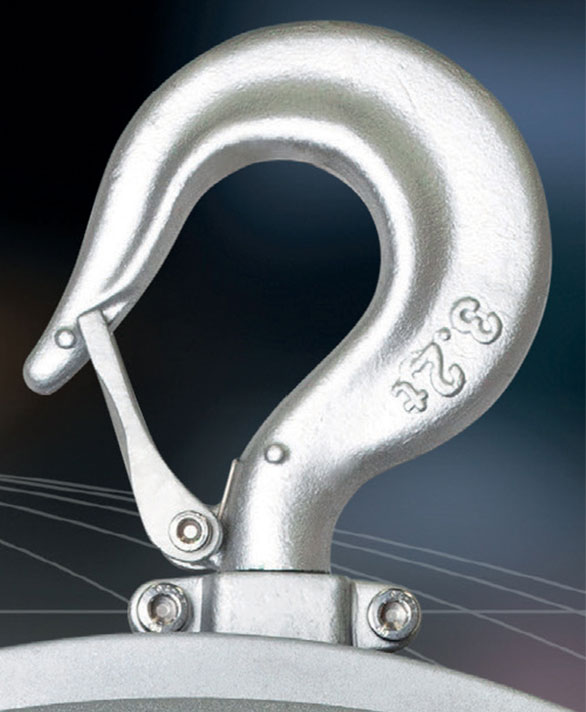

●Superior design of top hook holders for double/Several columns

of load chains.

●Reinfore double pawl brake system and larger dia. pawl springs

ensure reliable brake.

●All performance can meet the EN13157, ASME B30.16 & JIS B8802

standard.

●Patents: USA, Canada, Germany, Australia, China, South Korea & Taiwan

China.

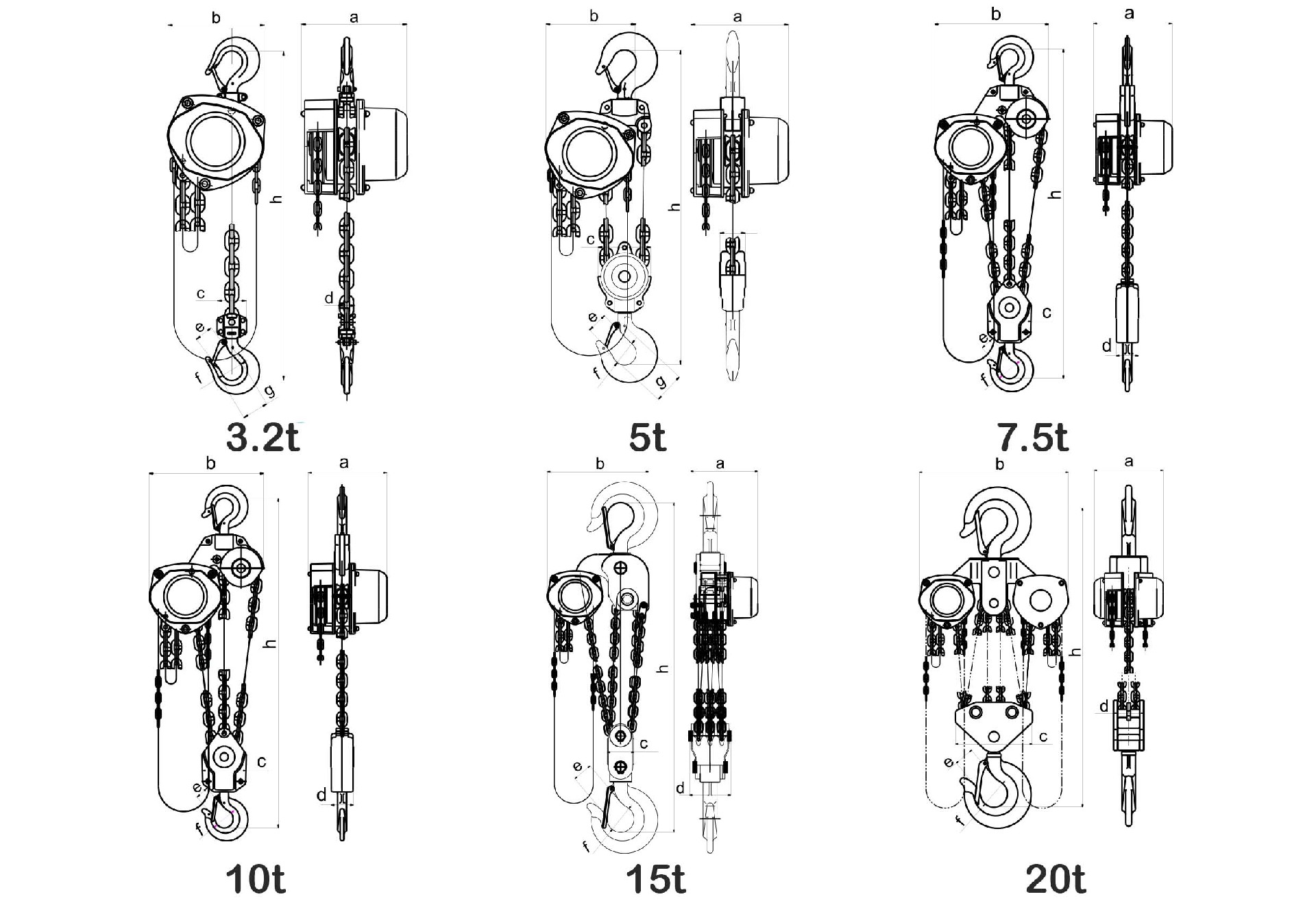

Techanical Parameter

Model	WLL tonnes	No. of Falls	Load Chain mm	Lift m	Mass kg	Extra Weight per m kg	Change from High Speed to Stand. Speed kg	Change from Stand. Speed to High Speed kg	Pulling Hand Chain to High Speed m	Lift 1m Stand.Speed m
CD032	3.2	1	10 x 30	3	31.0	3.0	> 55	< 25	27	136
CD050	5.0	2	10 x 30	3	45.0	5.2	> 110	< 50	54	272
CD075	7.5	3	10 x 30	3	63.0	7.4	> 165	< 75	81	408
CD100	10.0	4	10 x 30	3	81.0	9.6	> 165	< 75	108	544
CD150	15.0	6	10 x 30	3	130.0	14.0	> 275	< 125	162	816
CD200	20.0	8	10 x 30	3	174.0	19.2	> 330	< 150	108 x 2	544 x 2
CD300	30.0	12	10 x 30	3	301.0	28.0	> 330	< 150	162 x 2	816 x 2
CD500	50.0	20	10 x 30	3	465.0	44.0	> 330	< 150	270 x 2	1360 x 2
