Main Feature

● Experience exceptional durability thanks to all-steel construction featuring rugged gear case enclosure and hand wheel cover.

● Enjoy increased lifting height thanks to low headroom.

● Compact design results in lightweight and easy portability.

● Minimize manual effort thanks to efficient drive train.

● Standard slip clutch device prevents the hoist from being used to lift damaging loads beyond rated capacity.

● Double pawl springs provide redundancy for reliable operation of brake mechanism.

● Get reliable braking with double enclosed brake cover that keeps out dust, rain, and dirt.

● CAPACITY

1/2 to 30 metric tonnes

● STANDARDS

EN13157 A1

At rated capacity, load-bearing parts are only stressed to 25% of their limit

Optional

● OPTIONS

1. Chain container to keep chain clean and out of the way

2. Slip clutch to protect from damaging overloads

3. Corrosion-resistant chain for corrosive environments

4. Custom lift lengths to suit your requirements

5. Plain or geared trolley mount

● BODY

Heavy-duty, high-impact steel construction (similar weight to aluminum), Rugged gear case and hand wheel cover, Compact design for low headroom and portability, Open load sheave for easy inspection and cleaning without dismantling the unit

● HAND CHAIN

High-quality steel

● LOAD CHAIN

Grade 80, Grade 100 optional

Heat-treated, low-weight manganese alloy steel, High-impact steel chain guide, Standard Lift: 3M

● GEARS

Double reduction gearing requiring very low effort to operate, Induction heat-treated and case-hardened, Enclosed to protect from dust and water

● HOOKS

Forged, heat treated carbon steel hooks open gradually and do not fracture, Self-closing top and bottom hooks with heavy-duty hook latch

● BEARINGS

Maintenance-free sealed bearings increase reliability and reduce pull force required to lift loads

Brake. Double pawl springs for extremely reliable operation and instant brake activation, Enclosed to protect from dust, rain, and dirt.

● OPERATING CONDITIONS

Recommended for -40˚ to +60˚ C

● OPTIONAL OVERLOAD PROTECTION

Slip clutch device prevents the hoist from lifting damaging loads beyond rated capacity

Techanical Parameter

Model		CH005	CH010	CH015	CH020	CH030	CH030S	CH050	CH100	CH200	CH300
Capacity(kg)		500	1000	1500	2000	3000	3000	5000	10000	20000	30000
Lift(m)		2.5	2.5	2.5	2.5	3	3	3	3	3	3
Load Chain	Falls	1	1	1	1	1	2	2	4	8	12
Load Chain	Size	5x15	6X18	7.1X21	8X24	10X30	7.1X21	9X27	9X27	9X27	9X27
Pulling Force(N)		240	250	265	335	363	265	360	380	380x2	380x2

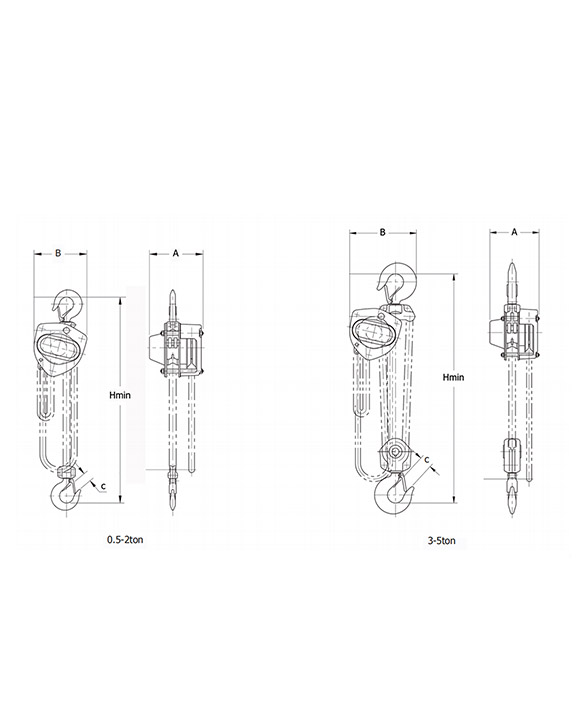

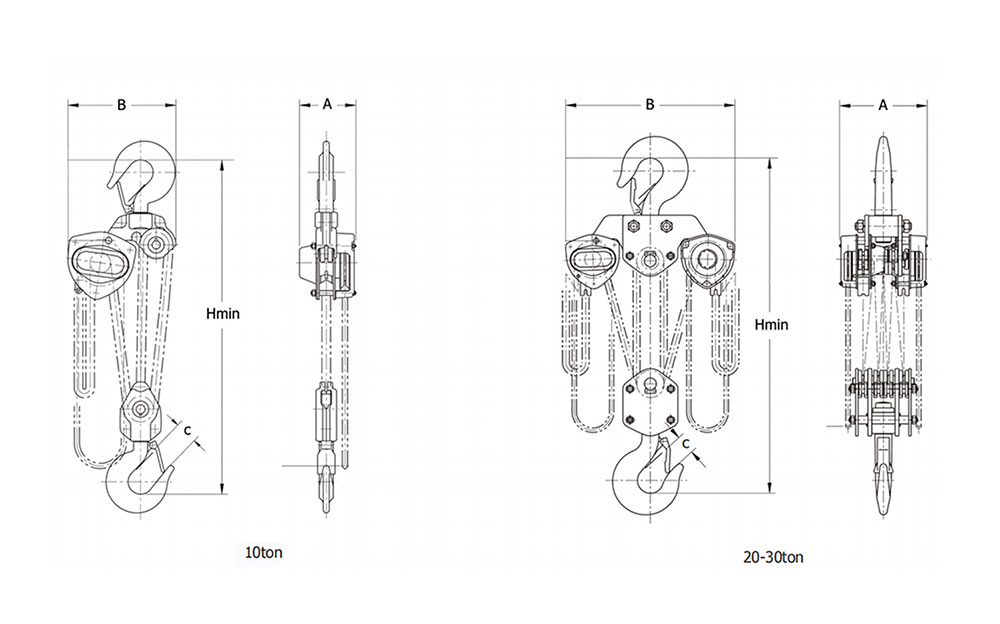

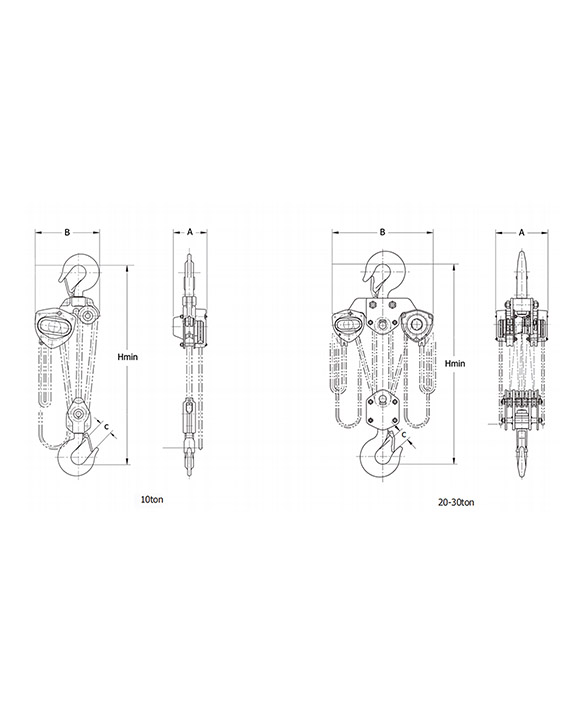

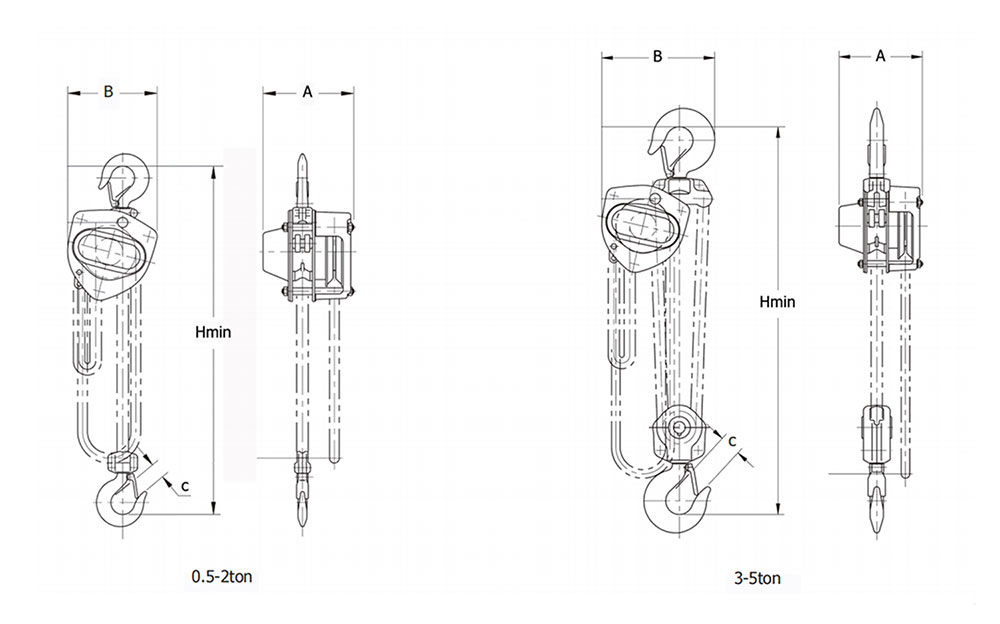

Dimensions	A(mm)	132	151	173	175	176	173	189	189	189	330
	B(mm)	148	172	196	210	230	226	280	463	630	670
	C(mm)	28	32	36	36	46	46	46	57	82	106
	Hmin(mm)	345	376	442	470	565	490	688	765	890	1000
(Length x Width x Height) (cm)		24x19x18	28x21x21	34x26x20	34x26x20	41x32x24	34x26x20	41x32x24	48x42x18.5	78x68x20	85x67x30
N.W.(kg)		11	12.5	17.8	19.5	29	23.5	41.3	78.5	193	220
