HOME >> Rigging&Sling >> Load Binder

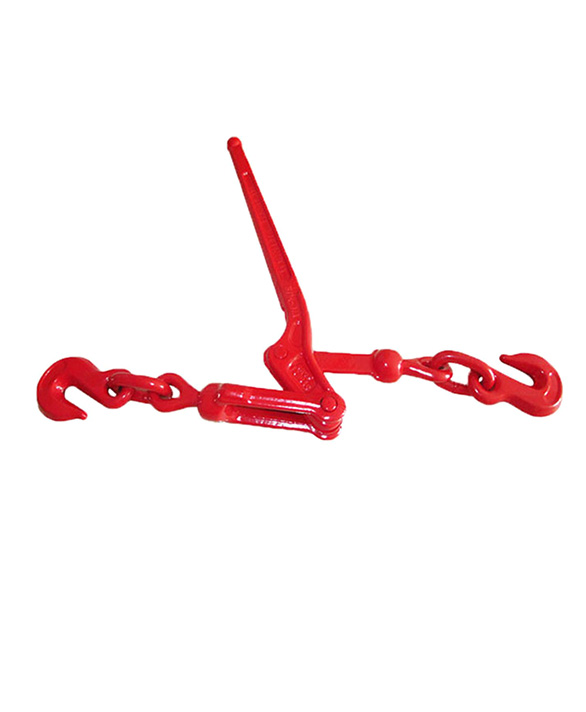

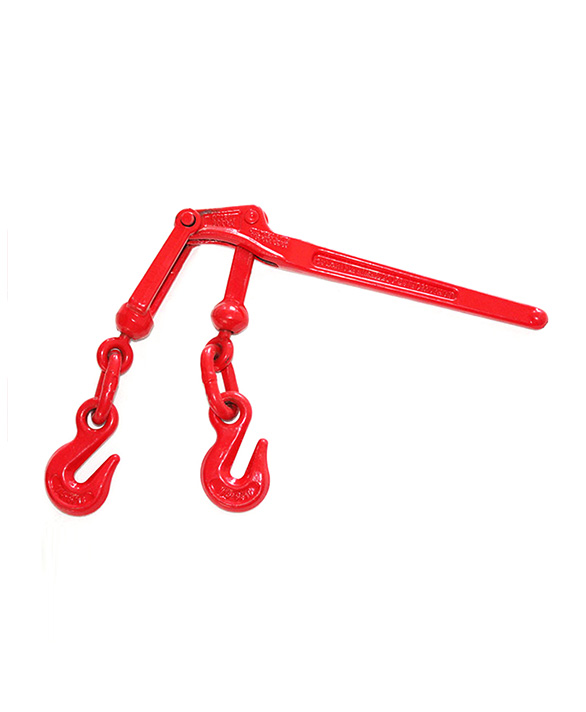

LBL Load Binder
  • Main Feature

    • Made from quenched and tempered allow steel

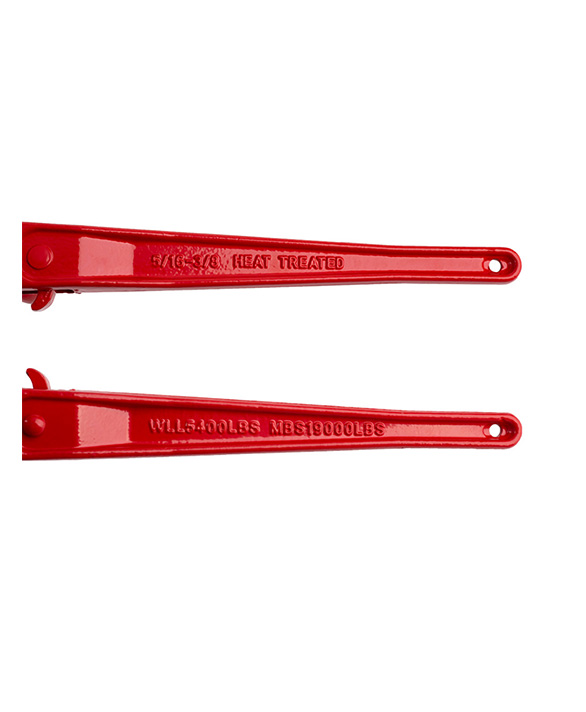

    • Extra heavy construction at leverage point to prevent spreading Heel of binder toggles away from load , permintting easy release.

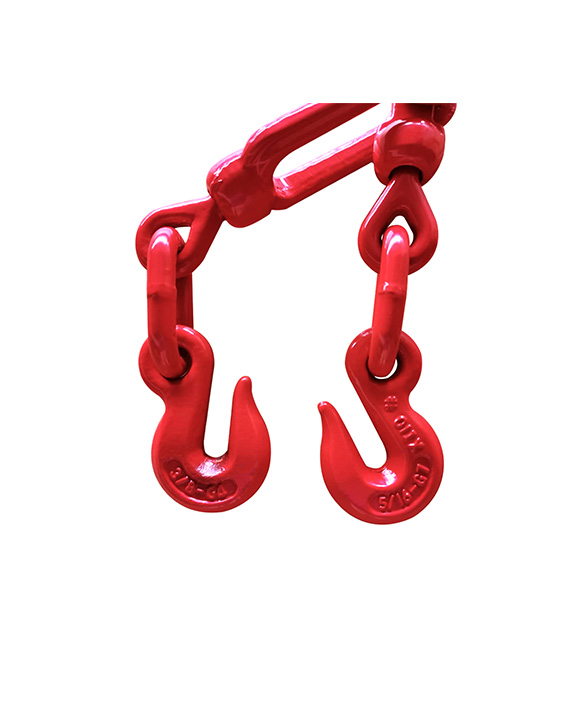

    • Ball and socket swivel joints at hook assemblies permit a straight line pull.

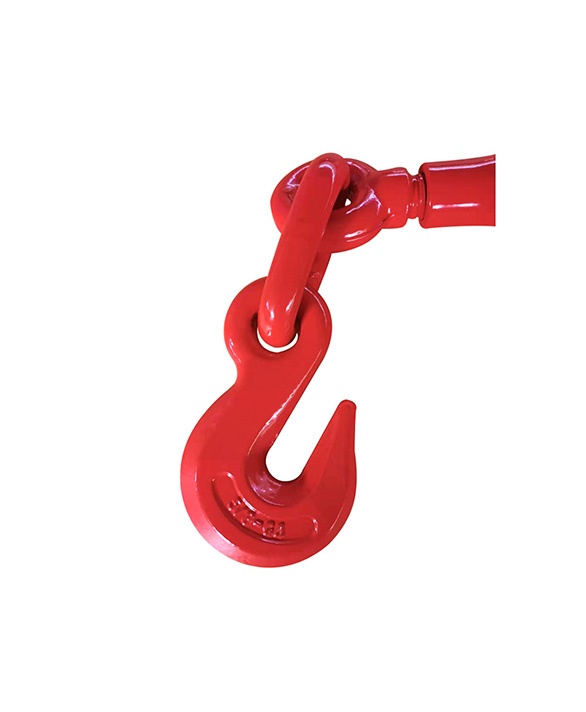

    • Free 360 degree swivel hooks for easier handing


  • Techanical Parameter

    Model

    Min-Max Chain

    Size (in)

    Working load

    limit (lbs)

    Proof

    Load(lbs)

    Minimum ultimate

    load (lbs)

    Weight/Each

    (lbs)

    Handle

    Length (in)

    Dimensions(in)

    h1

    h2

    h3

    h4

    h5

    h6

    h7

    LBL01

    1/4-5/16

    2200

    4400

    7800

    1.6

    11.42

    18.5

    17.3

    14.17

    11.42

    8.27

    8.07

    0.35

    LBL02

    5/16-3/8

    5400

    10800

    19000

    4.773

    15.43

    25.2

    23.2

    19.49

    15.55

    11.22

    11.22

    0.51

    LBL03

    3/8-1/2

    6600

    10800

    19800

    4.891

    17.24

    28.5

    26.38

    22.05

    17.64

    12.99

    12.2

    0.59

    LBL04

    3/8-1/2

    9200

    18400

    33000

    5.864

    17.24

    28.5

    26.38

    22.05

    17.64

    12.99

    12.2

    0.59

    LBL05

    1/2-5/8

    13000

    26000

    46000

    6.536

    21

    33.86

    30.12

    25.87

    20.87

    14.37

    14.37

    0.74



  • Optional
  • Download

    LBL Load Binder Brochures.pdf
